GS-D1

Rich graphic display functions

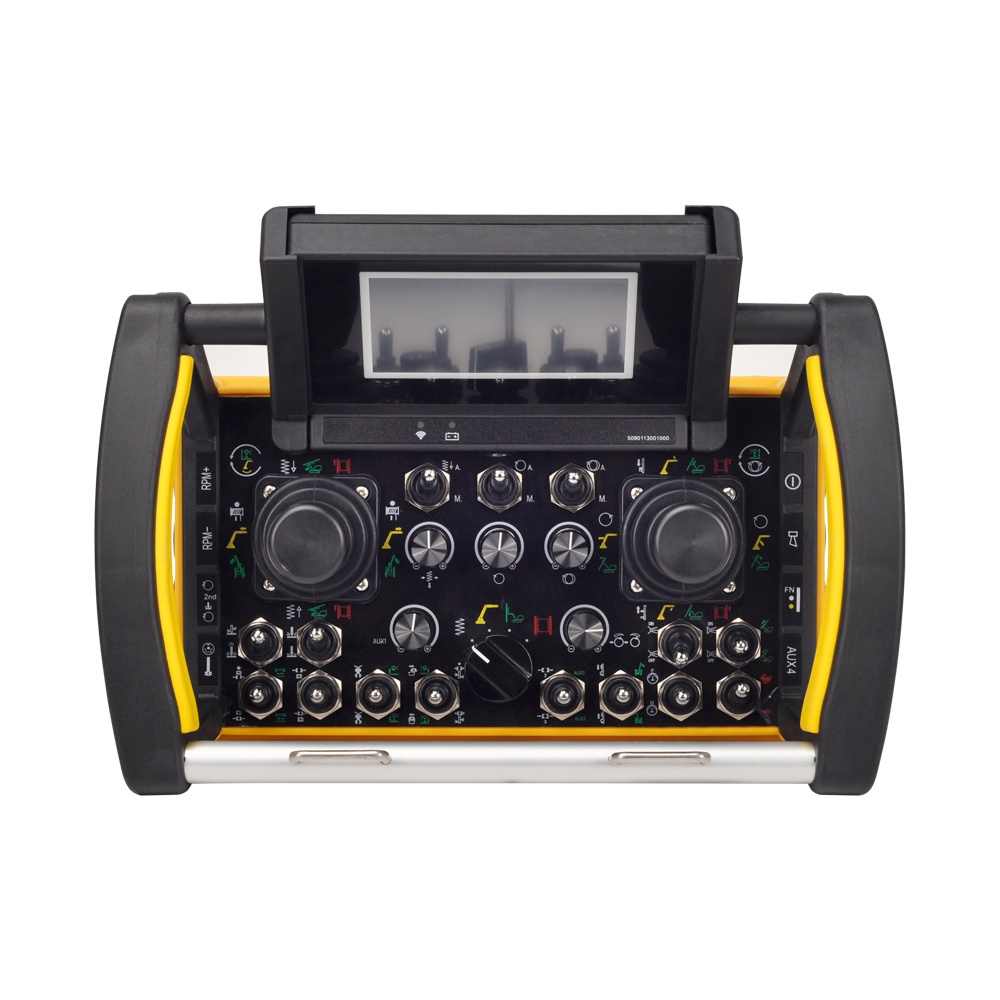

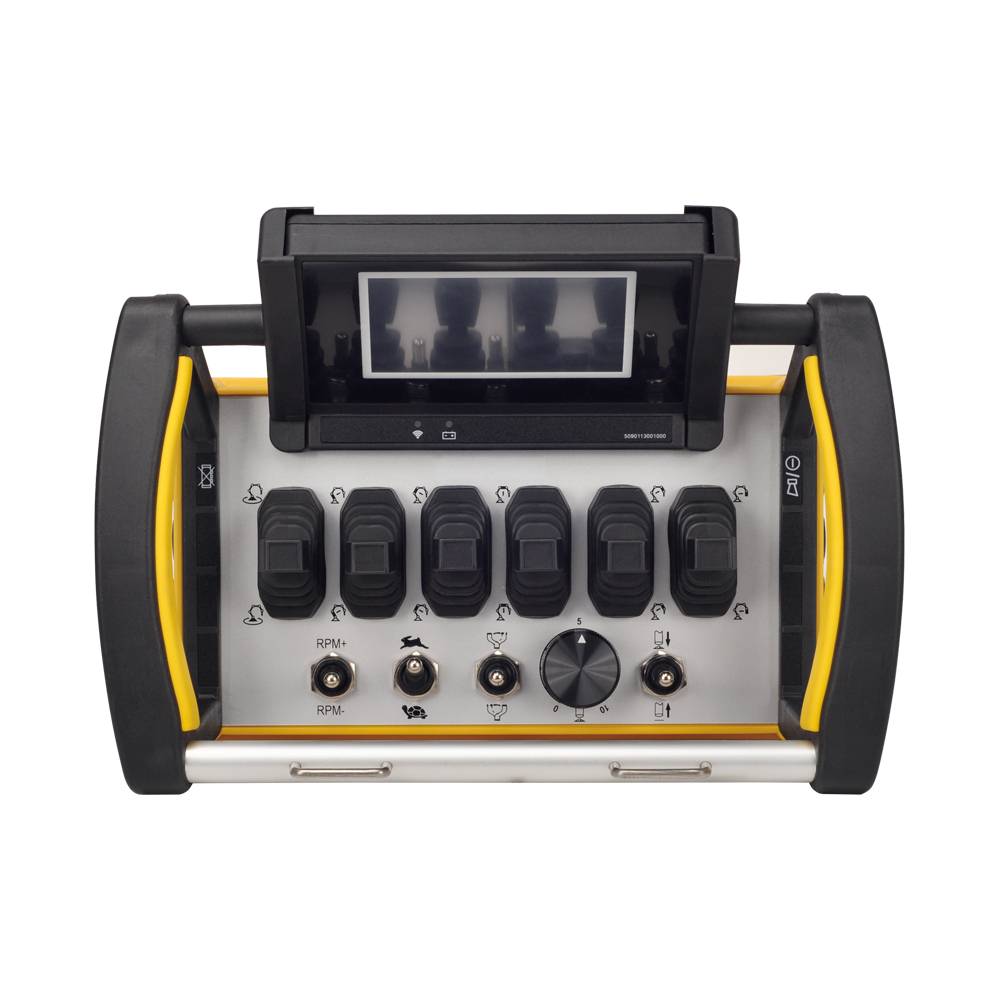

This transmitter can be equipped with 1-6 operating levers or 2-3 operating handles (continuously variable in the X/Y or Z axis direction).

This transmitter is equipped with an emergency stop switch, which can immediately stop all movements and functions of the lifting machinery. The emergency stop function complies with EN13849: 2008cat.3, PL=e standard.

This transmitter can be equipped with multiple toggle switches,buttons, gear switches, and potentiometers to operate and control various functions; For example, the start/stop, acceleration and deceleration of the engine, sound signals, and flow and speed control of the hydraulic system. Adopting highquality operating rods and toggle switches, it has good operating experience.

The operating speed of lifting machinery is positively proportional to the displacement angle of the operating rod.Built in wireless omnidirectional smart antenna. LED lights and sound signals indicate operating status and battery level. Assist in checking and troubleshooting minor errors and fault displays in the system.

Micro operation is a standard design. For example,reduce the speed in five gears, which are 60%, 50%, 40%,30%, and 20% of the normal speed.Can be equipped with LED lights and a 4.3 inch LCD display screen to indicate and display feedback values of lifting machinery.

This remote control, in conjunction with the receiver, can be adapted to various types of hydraulic valves on the market.

The automatic frequency management function can provide reliable wireless signal transmission, and is designed with enhanced multiple anti-interference capabilities, equipped with digital frequency hopping technology,  effectively ensuring free operation without interference at (433MHz/868MHz). Other frequency bands can also be customized according to the laws and regulations of different countries.


Customized label options

→   Customization includes text, fonts, logos, symbols, and colors.

Technical Parameters
Radio frequency range430-450MHz;850-870MHz
Number of wireless channels0~199
Maximum output power≤10mW
Receiver sensitivity≤-108dBm@20KBps
Wireless Modulation Mode(G)FSK
Data transmission rate20KBps
FH methodAutomation
Airborne data encryptionDynamic encryption with own protocol (own patented technology)
System address code32-bit fixed ID address
Effective control distanceRadius from receiver not less than 120m (open distance)
Consistency of actionRocker action and drive components to maintain the same time, action lag time ≤ 0.1s
Disabled protectionEmergency stops
Passive stopping time2S
Prevent accidental movement from a stationary position (UMFS)Initial position detection of all switches at startup
Anti-interferenceBuilt-in electrical system immunity according to EN300220
Vibration and shock testsAdopted in accordance with GB/T 2423.5-1995, GB/T 2423.10-2008
Operation panelCustomized according to customer's program
Antenna ModeInternally installed
Battery low alert and alarm?
RFIC card authorization and management functions?
Operate switching control pointsCustomized according to customer's program
Number of universal rocker controlsCustomized according to customer's program
Number of linear joystick controlsCustomized according to customer's program
Number of rotary potentiometersCustomized according to customer's program
Operating temperature-20℃~65℃
Power supplyModule lithium battery 3.7V 7800mAH
Continuous Use Endurance≥ 10 hours
Switching function for systems with dual batteriesFree switching function with dual battery power detection
Transmitter-Receiver Pairing Function?
On-site program upgrade function?
Shell materialGlass fiber reinforced nylon
Support protectionMetal aluminum alloy frame
IP GradeIP65
Size299 x 186 x 179 mm.
