GDL-A218
Smart Antenna Technology to Avoid the Signal Interference
Antenna adjustable technology adjusts to the best performance according to the wireless signal condition, to reach the signal stability and lower power consumption.
The transmitter's body is all made of alloy material, and the whole shell is with high strength alloy material and combined with multiple support structure. The back is perfectly arched with humanized and warm details. The eight anti-skid grooves are elaborately carved, with the ultimate sense of grip and perfect texture.
The transmitter has 18 one-step buttons with excellent hand-feel, and the front symbol of the button can be customized or implemented with a standard pattern.
GDL-A218 transmitter has a high degree of adaptability and rich functions. It is flexible, safe and reliable. With GDL-A218 transmitter, there are multiple combinations of choices. You can control as many as 1,000 targets with only 1 transmitter to achieve one-to-many (more wireless remote control applications than GDL-A215). Users can also register up to 128 transmitters with only one receiver, to achieve many-to-one.
The transmitter presets the standard functions when it leaves the factory. Users can customize the functions through the attached software. The transmitter has passed CE, FCC and IC certification.
DGL-A2 series transmitter has 5 LED indicators and 1.5 inch OLED displays screen to display the feedback information, and it can be programmed according to customers' requirements.
The transmitter communicates with the corresponding receiver by the protocol of Hamming Code, CRC check Code and the unique identification code.
The transmitter is equipped with automatic frequency management function and can work continuously without any interruption caused by radio interference of other wireless devices.
Soft-touch button & Customized Panel

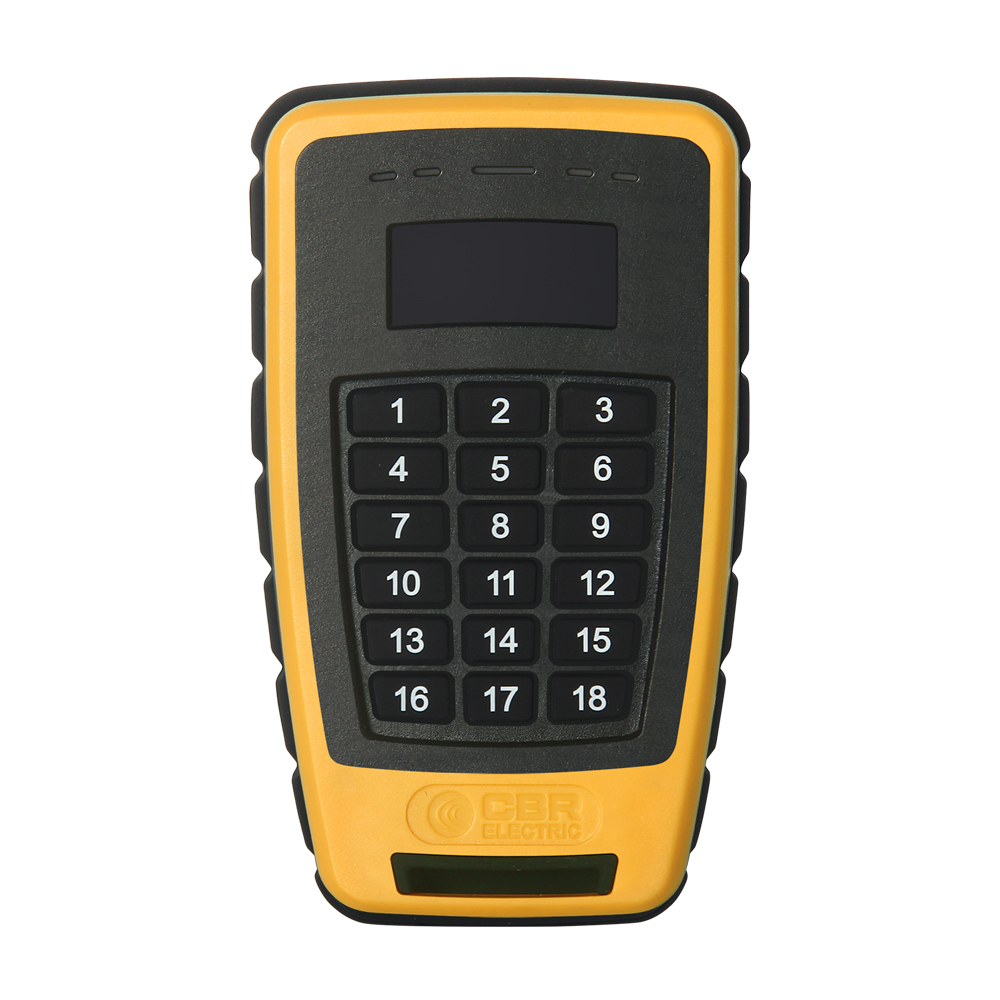

→ The transmitter has unique touch buttons and it is available in two models: a panel labeled 1-18 and a blank panel that allows you to customize the frame and key symbols. Blank panel usually comes with a frame label with a standard pattern.
| Technical Parameters | |
| Number of Buttons | 18 one-step buttons |
| Power Supply | 3 AAA, LR03, AM4 batteries |
| Temperature Range | -25°C to 80°C |
| Output Power | Max.5mW |
| Frequency | 334-338MHz，400-47，5MHz 865-870MHz，902-928MHz |
| Working Distance | ~100m/~300ft |
| Antenna | Smart antenna built-in |
| Display type | 5 LED indicator lights/ 1.5 inch OLED displays screen |
| Additional functions | Safe shutdown function, vibration alarm, one-to-many function, many-to-one function, many-to-many function, LED feedback, intelligent identification card, data encryption transmission, etc. |
| Protection Grade | IP67 |
| Size | 134*77*37 mm |
