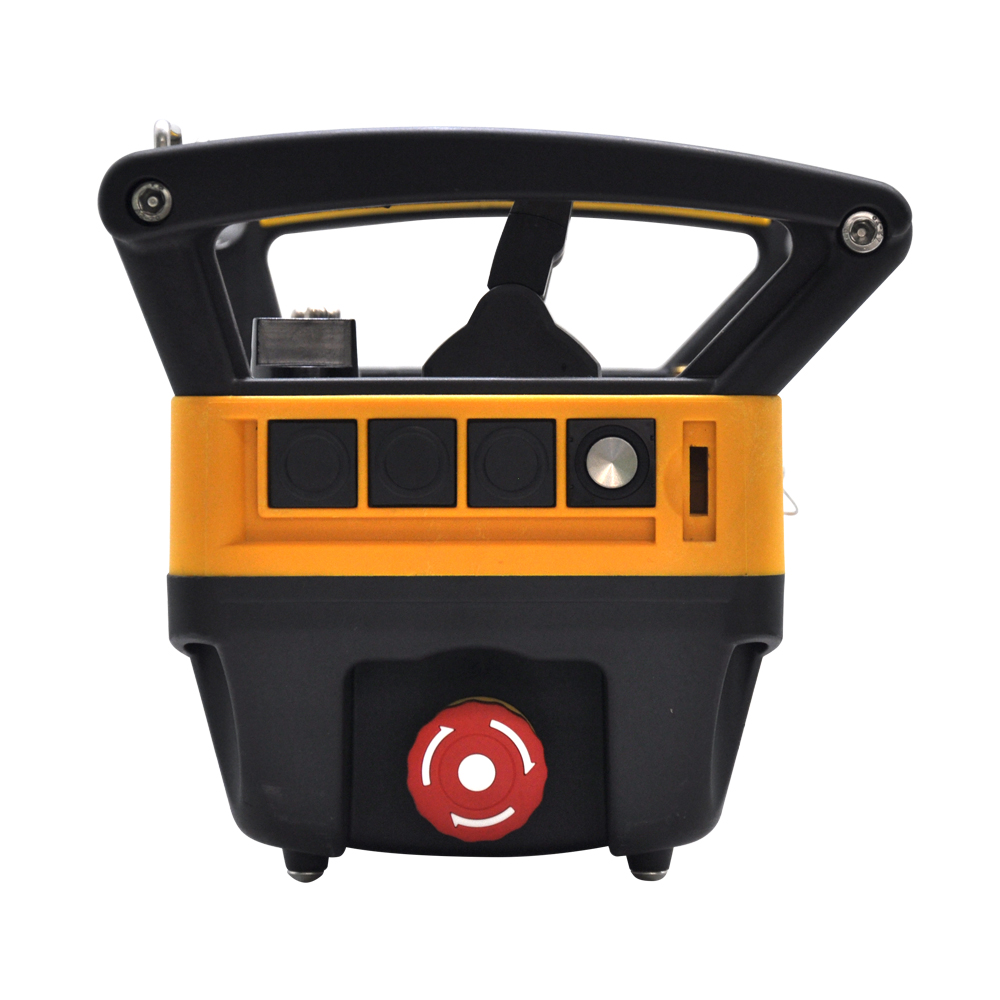

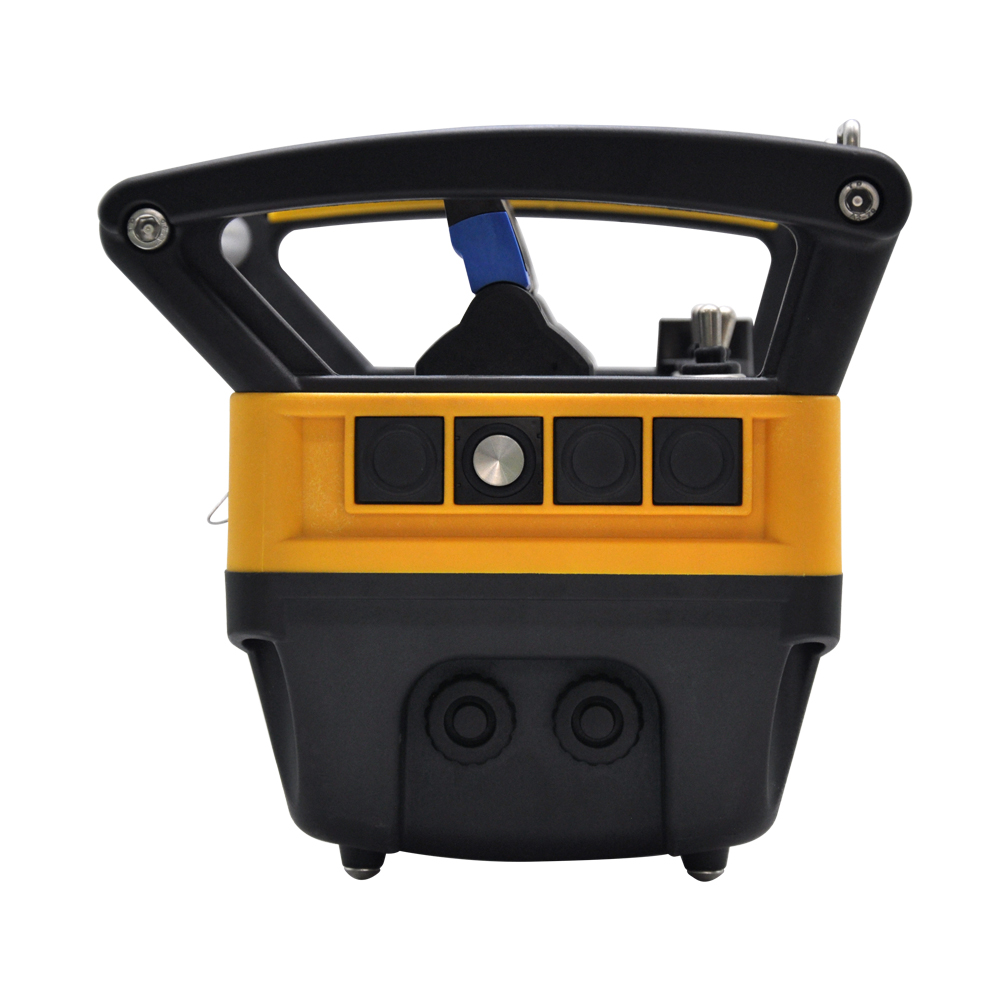

GS-A0
Compact, compact, and fully functional
The GS-AO series remote control is a standard multifunctional transmitter that can be easily customized according to your needs. Using its modular design, the GS-AO transmitter can use 1-6 linear joysticks or 1-3 cross handle joysticks, as well as several buttons and switches. The size and arrangement of all control components have been carefully designed to facilitate long-term and frequent use by operators without feeling tired.
The transmitter comes with a series of standard and optional settings and functions, which can improve the operator's experience. For example, the "turtle/rabbit" toggle switch can be used to adjust the proportional action of the Pinda Speed Epidemic in five gears. The feedback information of the remote controlled machine's action and the working status information of the remote transmitter itself can be programmed with LED indicator lights, which can be fed back to the operator.
Automatic frequency hopping technology can ensure continuous operation and uninterrupted operation when a large number of wireless devices are used simultaneously. The stop function meets the performance level "d" (PL d), which is the highest level specified in EN ISO 13849-1 and is a legally binding standard applicable to safety critical components of control systems.
Optional SMART C-ENIGMA (Intelligent Information Card) ensures authorized operators use the remote control system to control the equipment. By managing and identifying remote control devices through SMART C-ENIGMA, setting the usage and control permissionsof operators, effectively avoiding unauthorized personnel from using remote control system to control devices.
Customized label options
→ Customization includes text, fonts, logos, symbols, and colors.
| Technical Parameters | |
| Radio frequency range | 430-450MHz；850-870MHz |
| Number of wireless channels | 0～199 |
| Maximum output power | ≤10mW |
| Receiver sensitivity | ≤-108dBm@20KBps |
| Wireless Modulation Mode | (G)FSK |
| Data transmission rate | 20KBps |
| FH method | Automation |
| Airborne data encryption | Dynamic encryption with own protocol (own patented technology) |
| System address code | 32-bit fixed ID address |
| Effective control distance | Radius from receiver not less than 120m (open distance) |
| Consistency of action | Rocker action and drive components to maintain the same time, action lag time ≤ 0.1s |
| Disabled protection | Emergency stops |
| Passive stopping time | 2S |
| Prevent accidental movement from a stationary position (UMFS) | Initial position detection of all switches at startup |
| Anti-interference | Built-in electrical system immunity according to EN300220 |
| Vibration and shock tests | Adopted in accordance with GB/T 2423.5-1995, GB/T 2423.10-2008 |
| Operation panel | Customized according to customer's program |
| Antenna Mode | Internally installed |
| Battery low alert and alarm | ? |
| RFIC card authorization and management functions | ? |
| Operate switching control points | Customized according to customer's program |
| Number of universal rocker controls | Customized according to customer's program |
| Number of linear joystick controls | Customized according to customer's program |
| Number of rotary potentiometers | Customized according to customer's program |
| Operating temperature | -20℃~65℃ |
| Power supply | Module lithium battery 3.7V 7800mAH |
| Continuous Use Endurance | ≥ 45 hours |
| Switching function for systems with dual batteries | Free switching function with dual battery power detection |
| Transmitter-Receiver Pairing Function | ? |
| On-site program upgrade function | ? |
| Shell material | Glass fiber reinforced nylon |
| Support protection | Metal aluminum alloy frame |
| IP Grade | IP65 |
| Size | 259 x 186 x 179 mm. |
